With our Inverter Drives 8400 protec and 8400 motec, as well as our SMV IP65 inverters, we offer precisely tailored products with a high degree of protection for decentralised applications, available in either motor-mounting or wall-mounting versions. Their compact design allows the devices to be secured directly to the machine support, for example, thus shortening the length of the motor cables considerably. This enables even complex machines to be structured clearly. Decentralised inverters are particularly beneficial in the automotive, intralogistics and printing industries.

Our products at a glance:

Decentralised inverters: suitable for wall mounting with pluggable connection system
Power range: 0.75 to 4.0 kW  (2.4 to 9.5 A)

Particularly suitable for: scissor lift tables in the field of intralogistics and in the automotive industry.

Advantages:

• Connections: start/stop, analog input, freely programmable digital inputs and outputs (4/2)
• Communication: CANopen, PROFIBUS, PROFINET
• Easy commissioning with plug technology (plug and drive)
• Fast availability
• LED display and status LED
• Scalable safety functions
• High degree of protection IP65

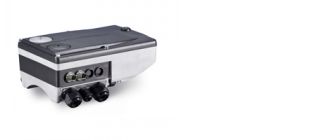

Decentralised inverters: mounted directly on the motor or to the wall.
Power range: 0.37 to 7.5 kW (1.3 to 16.5 A)

Particularly suitable for: travelling and conveyor drives in the field of intralogistics, fans and pump drives.

Advantages:

• Connections: start/stop, analog input, freely programmable digital inputs and outputs (5/1)
• Communication: AS-Interface, CANopen, EtherCAT, PROFIBUS, PROFINET
• Easy commissioning with plug technology (plug and drive)
• Modular design consisting of drive unit, communication unit and wiring unit modules
• Large diagnostics LED display clearly visible from a distance
• "VFC eco" energy-saving function
• STO safety function
• High degree of protection up to IP66

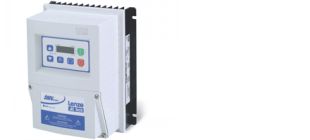

Inverter Drives SMV IP65

Offer exemplary performance even in extreme environments.
