[返回]名称：Inverters - control cabinet

Inverters - control cabinet

Inverters for control cabinet installation

Inverters for control cabinet installation are designed for IP20 and IP31 degrees of protection. For some devices, not only is the easy installation mode possible, but also the ability to use the cold-plate or push-through installation technique. The devices can be installed one after the other to save space, and they can be used in a DC bus operation, keeping the wiring efforts to a minimum.
Thus, topologies can be clearly arranged even in the smallest spaces. All other control components, like the controller, the I/O system, are mounted right next to the inverters.

Our products at a glance:

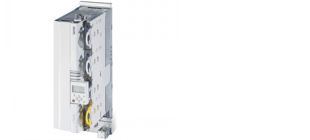

Servo Drives 9400 HighLine

Impressive results for demanding machine tasks and single-axis or multi-axis applications

Inverters for controlled, dynamic motion.
Output current: 1.9 to 695 A (0.37 to 370 kW)

Particularly suitable for: processing of continuous material in the packaging industry, perforating paper webs in the printing industry, winding in the textile industry, storage technology in the field of intralogistics.

Advantages:

  • Connections: start/stop, analog inputs/outputs (2/2), freely programmable digital inputs/outputs (8/4)
  • Resolver and universal multi-encoder input
  • Communication: CANopen, DeviceNet, EtherCAT, Ethernet, EtherNet/IP, POWERLINK, PROFIBUS, PROFINET
  • Supports synchronous and asynchronous motors
  • Integrated brake management
  • Scalable memory thanks to multiple memory modules
  • Versatile and freely configurable technology functions, e.g. for table positioning, positioning controls, electronic gearboxes and cams
  • Scalable safety functions

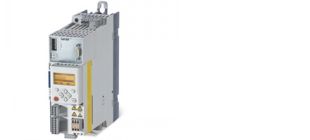

Inverter Drives 8400 TopLine

Easily achieve high dynamic performance and precision.

Inverter Drives 8400 HighLine

Help you stay on top of the situation.

Inverters for easily controlled motion and positioning.
Power range: 0.37 to 45.0 kW (1.3 to 89 A)

Particularly suitable for: rotary indexing tables or warehousing systems in the field of intralogistics, bag form fill and seal machines in the packaging industry.

Advantages:

  • Connections: start/stop, analog inputs/outputs (2/2), freely programmable digital inputs/outputs (7/4)
  • Communication: CANopen on board, EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, PROFINET
  • Suitable for drive applications with or without speed feedback
  • Integrated positioning control
  • Up to 15 selectable positioning points included each of the corresponding travel profiles
  • Integrated brake management
  • "VFC eco" energy-saving function
  • STO safety function

Inverter Drives 8400 HighLine

Help you stay on top of the situation.

Inverters for easily controlled motion and positioning.
Power range: 0.37 to 45.0 kW (1.3 to 89 A)

Particularly suitable for: rotary indexing tables or warehousing systems in the field of intralogistics, bag form fill and seal machines in the packaging industry.

Advantages:

  • Connections: start/stop, analog inputs/outputs (2/2), freely programmable digital inputs/outputs (7/4)
  • Communication: CANopen on board, EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, PROFINET
  • Suitable for drive applications with or without speed feedback
  • Integrated positioning control
  • Up to 15 selectable positioning points included each of the corresponding travel profiles
  • Integrated brake management
  • "VFC eco" energy-saving function
  • STO safety function

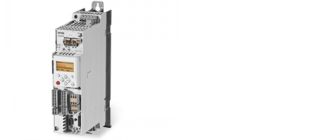

Inverter Drives 8400 StateLine

Ensure movement in complex applications.

Inverters for easy, controlled motion.
Power range: 0.37 to 45.0 kW (1.3 to 89 A)

Particularly suitable for: transverse materials handling equipment or palletizers in the field of intralogistics, extruders in the plastics industry, filling systems in the packaging industry.

Advantages:

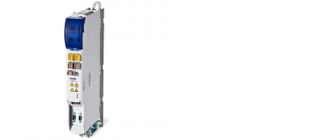

i700

Generation Easy for multi-axis applications.

New inverter for controlled, dynamic motion.
Output current: 2.5 to 32 A (0.75 to 15 kW)

Particularly suitable for: handling and packaging machines and robotic applications

Advantages:

  • Connections: digital inputs/outputs (2/0)
  • Resolver and encoder feedback
  • Communication: EtherCAT
  • Axis modules capable of multiple overloads for peak output currents between 5 and 64 A, double axes up to 32 A
  • The servo inverter for Controller-based Automation in conjunction with the various types of  Controllers
  • CIA 402 operating modes (position, velocity, torque-control, velocity-mode)
  • STO safety function

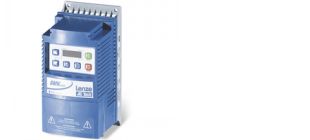

Inverter Drives SMV IP31

Variable functions in complex applications.

High-performance inverter for controlled motion.
Power range: 0.25 to 45 kW (1.1 to 88 A)

Particularly suitable for: turntables in the field of intralogistics, production lines in the food industry and industrial manufacturing operations.

Advantages:

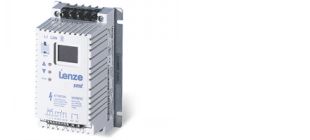

Inverter Drives smd

Control speeds with ease.

Inverter for controlled motion.
Power range: 0.25 to 22 kW (1.3 to 46 A)

Particularly suitable for: conveyor drives in the field of intralogistics, pump drives

Advantages:

  • Connections: start/stop, analog input, freely programmable digital inputs and outputs (3/1)
  • Quick and easy commissioning
  • Integrated motor overload protection
  • Clearly legible LED display
