Packaging machines, robotic and handling systems are often particularly challenging from the standpoint of automation technology. They require a powerful and homogeneous system capable of controlling coordinated movements along several axes. The system must also be able to assume the control function of a linear process.

For these automation tasks, you will find the controllers you need for controller-based and drive-based automation.

Our products at a glance:

Making complexity manageable.

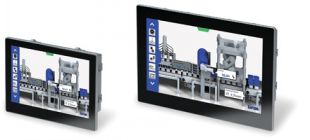

Easy, intuitive and modern machine operation and observation - No problem, with our new gesture-controlled operating system for process visualisation and control. The v800 is a system with a simple operator control concept, consisting of high-resolution hardware and matching visualisation software. The software VisiWin 7 is based on WPF technology with multitouch operation.

Advantages:

• High-quality implementation of graphic style guides
• Modern UI technologies .NET (WPF) and HTML5
• Multitouch and gesture control
• Individual navigation concepts
• Usable with mobile devices such as tablets and smartphones thanks to HTML5

Easy, intuitive and modern operator control.

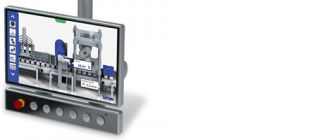

Our new operating system for process visualisation makes operating and monitoring machines simpler. The visualisation solution consists of modern and high-resolution hardware and software complete with gesture-driven, ergonomic operator controls. The VisiWin 7 software is based on WPF technology with multitouch operator control.

Advantages:

• Complete in IP65 as an external panel
• High-quality implementation of graphic style
• Modern UI technologies .NET (WPF) and HTML5
• Multitouch and gesture control, as known from smartphones

The Controller 3200 C with Atom processor offers everything that an automation specialist desires from a strong partner: a compact and especially robust design, large power reserves and a comprehensive set of features.

Advantages:

• Logic (PLC), motion and visualisation in a single device
• Easy engineering with remote data storage
• High-precision control for optimum production results
• Easy mounting onto a DIN rail in the control cabinet
• I/O system 1000 can be directly connected as local I/Os
• Top performance and maintenance free in the smallest of spaces without forced cooling and other moving components
• Prepared for the future thanks to compliance with industrial standards
  • IEC 61131-3, PLCopen, PLC Designer based on CoDeSys 3
• Industrial communication: EtherCAT on board and Ethernet switch integrated
• Intel Atom® processor

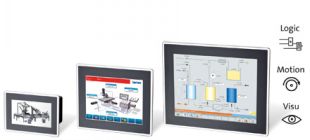

We have taken yet another step towards creating an easier future with the p500 – a perfect combination of maintenance-free panel-mounted controller, logic (PLC), motion and visualisation in a single device. It is ideally suited for use as a control and visualisation system within controller-based automation systems suiting applications with central motion control or as a visualisation device within a drive-based automation system.

Advantages:

• Logic (PLC), motion and visualisation in a single device
• Machine-oriented and high-precision control for optimum manufacturing results
• Top performance and maintenance free in the smallest of spaces without forced cooling and other moving components
• Prepared for the future thanks to compliance with industrial standards
  • IEC 61131-3, PLCopen, PLC Designer based on CoDeSys 3
  • Industrial communication: EtherCAT on board and Ethernet switch integrated

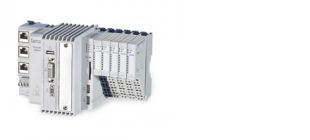

Coming through! Here comes our new Cabinet Controller c300. Based on the 3200 C, the c300 fits seamlessly into our platform which is built on a consistently modern system architecture.

The benefits: within the Controller-based Automation system, the precisely tailored Controller c300 takes responsibility for all of your control tasks. It focusses primarily on basic control (PLC) and motion tasks. Space-saving and intelligent at the same time.

Highlights

• Small control system with I/O modules which can be connected in series and integrated master interfaces for EtherCAT and CanOpen
• Easy standard set-up and data backup via USB flash drive
• Can be extended with communication interfaces (PROFIBUS slave, PROFINET device)
• Future-proof due to compliance with industrial standards
• High system-availability
  • Integrated UPS solution
  • Easy device replacement thanks to replaceable memory card
• No need for maintenance thanks to battery-free and fanless design

Display unit for remote solutions with Controller 3200 C or Industrial PCs

Advantages:

• In two design versions
  • Embedded Line for installation
  • Command station
• Data transfer via digital DVI video interface
• Operator terminal with integrated keyboard or touch screen
• Operator terminal compatible with all Lenze Industrial PCs

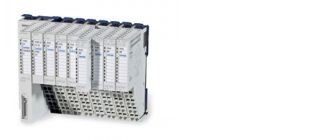

At the very first glance, the I/O 1000 range impresses with the narrow design of its I/O modules, which can take up to 8 connections. They only require 12.5 mm of space on conventional DIN rails.

Advantages:

• 12.5 mm narrow I/O modules with 8 connection points
• Permanent wiring thanks to the two-part concept
  • Base module and electronic module
• Bus coupler for industrial communication: CANopen, DeviceNet, EtherCAT, Modbus/RS485, PROFIBUS, PROFINET
• Can be mounted onto the DIN rail without the need for tools
• Clear labelling concept and diagnostic concept
• An LED and a labelling field are clearly assigned to each channel
• 64 modules can be connected in series using a backplane bus
• Easy to connect thanks to the connection plan on the module

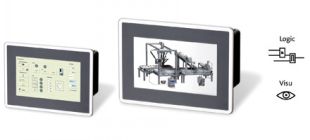

Based on the Panel Controller p500, the new p300 fits seamlessly into our platform which is built on a consistently modern system architecture. It combines logic (PLC) and visualisation in a compact device and is ideally suited to machine applications which only require a low processing power. With the same system properties as its older brother, its strength lies in its visualisation capabilities when used as an HMI. By extending the Controller portfolio with the p300, Lenze has opened up new possibilities within the system.

Isn't it great when engineering is so easy?!

Highlights

• Robust industry-compliant Panel Controller available in sizes 10.9 cm (4.3"), 17.8 cm (7") and 26.4 cm (10.4")
• For basic to complex control and visualisation tasks
• Uniform engineering in all phases of the customer's machine development process
• High degree of system availability
  • Integrated UPS solution
  • Simple device replacement via replaceable memory card
• Nomaintenance required thanks to batteryless and fanless design
